Transform your logos and bold lettering into raised 3D puff embroidery. Engineered with precise end-capping, calibrated satin density, and center-out cap sequencing in all machine formats.
Sculpted 3D
Engineered for 2mm & 3mm foam
Clean Edges
Perpendicular end-caps
Included Revisions
Allowance depends on your plan
Free Quote
Send artwork for free review
Dimensional Technique
3D puff embroidery uses high-density EVA foam underneath satin stitches to create a raised, dimensional look that stands out from standard flat embroidery.
Puff digitizing requires different technical rules than standard embroidery: standard underlay is removed from puff sections so foam remains elevated, satin density is increased to perforate the foam cleanly, and every column is capped so foam never shows at the edges.
Auto-digitized or standard flat files fail on 3D foam because needles tear the foam irregularly and create thread breaks. Our manual digitizing process ensures:
Step-By-Step
How we structure stitch sequences to make puff embroidery run smoothly on your machines.
Any flat base embroidery, small taglines, or background outlines are sequenced to sew first on the base fabric.
The machine automatically halts with a color stop so the operator can lay the foam sheet over the designated area.
Perpendicular end-cap stitches lock and cut the foam edges, preventing any raw foam from protruding.
Tight satin stitching (0.30mm-0.35mm spacing) wraps completely around the foam for a smooth, sculpted finish.
Applications
Custom puff parameters for various fabrics, structured crowns, and garment weights.
Bold 3D letters and sports team initials programmed with center-out sequencing for curved cap frames.
High-density puff emblems on heavyweight cotton hoodies and sweatshirts with custom underlay adjustments.
Calibrated density for structured foam fronts and soft unstructured panels without fabric puckering.
Smart multi-step sequences where background details sew flat first before the machine stops for foam placement.
Compatibility
Every file includes all commercial and home machine formats with a comprehensive PDF production sheet.
DST
Tajima / Commercial
PES
Brother / Babylock
JEF
Janome / Elna
EXP
Melco / Bernina
VP3
Husqvarna / Pfaff
XXX
Singer
Color Sequence Sheet
Recent Work
Samples of real digitized 3D puff stitch-outs on structured caps.

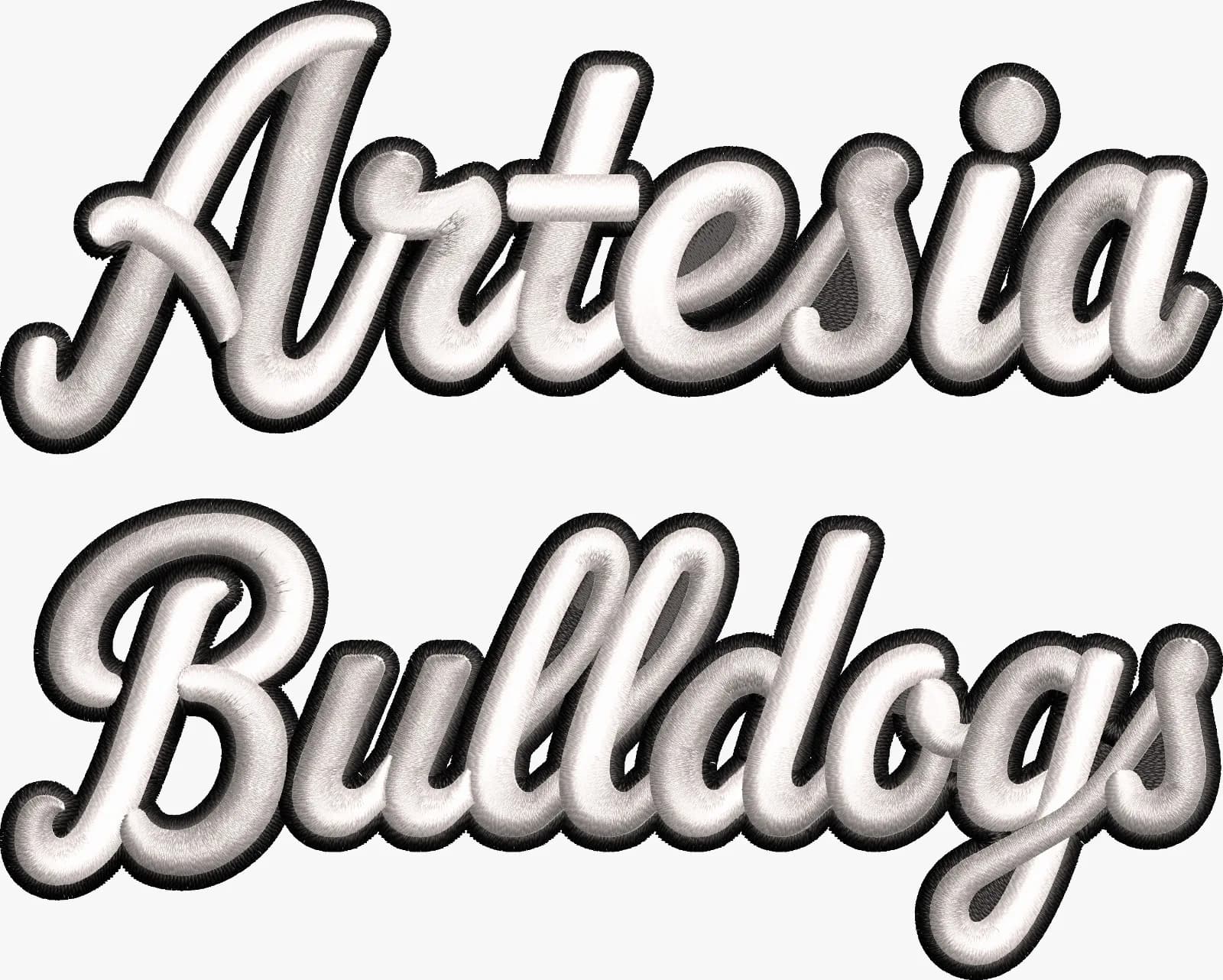

Dense satin coverage over 2mm foam with clean end-caps.
Why Choose Velora
Foam changes how a logo is digitized. Send the production details with your artwork so raised lettering and flat details can be planned together.
Fine text, narrow gaps and small outlines may need to stay flat or be simplified. Before a production run, check the foam-placement stop, end coverage and foam removal on a sample using the intended materials.
Delivery is a digital embroidery file in the agreed machine format, not a finished garment. Confirm the finished size, colour sequence and any additional cutting or artwork files in your quote. An AI, SVG or PNG artwork file still needs digitizing before a machine can sew it.
Delivery time and included revisions depend on the selected plan. Check the pricing below and confirm your deadline before ordering. If a sample needs adjustment, send a clear photo of the sew-out with the fabric, stabilizer and machine details.
Send artwork for a quotePricing
Flat prices per design. Send your artwork and we confirm the plan and exact price before any work starts.
Simple logos, small text and most left chest or cap designs.
$6.99per design
Detailed logos, jacket backs, applique and patch files.
$12.99per design
Urgent, complex or 3D puff designs.
$19.99per design
Stitch counts are estimated from your artwork before work starts. If a design needs a higher plan, we tell you first and you decide.
Common questions about our 3D puff embroidery digitizing services.
3D puff digitizing is a technique where high-density satin stitches are programmed over a layer of EVA embroidery foam. When stitched, the needle punctures and cuts the foam along the satin edges, leaving a three-dimensional, raised embroidery effect.
